Created attachment 125
CivetWeb linger option
This is not really blocking and or maybe not a real bug but I'm writing the info here not to lose my notes (I have to switch to something else).
Note: I've reproduce this behaviour only when Orthanc is running inside docker but this is probably related to different ways to handle sockets from "loopback - localhost" or from remote connections.
Steps to reproduce:
Launch an Orthanc container:
docker run --name test-keep-alive -h test-keep-alive -d -p 8047:8042 -e ORTHANC__AUTHENTICATION_ENABLED=false osimis/orthanc:23.3.5
docker exec -it test-keep-alive bash
root@test-keep-alive:/# apt-get update && apt-get install net-tools
root@test-keep-alive:/# netstat -puta | grep 'Orthanc\|TIME_WAIT'
This should only show 2 sockets in LISTEN state
root@test-keep-alive:/# netstat -puta | grep 'Orthanc\|TIME_WAIT'
tcp 0 0 0.0.0.0:8042 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 0.0.0.0:4242 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 test-keep-alive:55530 151.101.10.132:http TIME_WAIT - (these 2 can be ignored)
tcp 0 0 test-keep-alive:55532 151.101.10.132:http TIME_WAIT -
In another terminal with python3 and requests installed, execute this python code:
Test 1: interval < KeepAliveTimeout (1 second)
----------------------------
import requests, time, logging
logging.basicConfig(level=logging.DEBUG, format="%(message)s")
s = requests.Session()
for i in range(0, 10):
s.get("http://localhost:8047/system")
time.sleep(0.5)
While Test 1 is being executed, show the used sockets (with netstat):
root@test-keep-alive:/# netstat -puta | grep 'Orthanc\|TIME_WAIT'
tcp 0 0 0.0.0.0:8042 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 0.0.0.0:4242 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 test-keep-alive:8042 172.17.0.1:36998 ESTABLISHED 1/Orthanc
tcp 0 0 test-keep-alive:8042 172.17.0.1:36978 TIME_WAIT -
Only one socket is ESTABLISHED and possibly one remains in TIME_WAIT (usually not)
Test 2: interval > KeepAliveTimeout (1 second)
----------------------------
import requests, time, logging
logging.basicConfig(level=logging.DEBUG, format="%(message)s")
s = requests.Session()
for i in range(0, 10):
s.get("http://localhost:8047/system")
time.sleep(1.5)
After Test 2 has been executed, show the used sockets (with netstat):
root@test-keep-alive:/# netstat -puta | grep 'Orthanc\|TIME_WAIT'
tcp 0 0 0.0.0.0:8042 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 0.0.0.0:4242 0.0.0.0:* LISTEN 1/Orthanc
tcp 0 0 test-keep-alive:8042 172.17.0.1:37024 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37012 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37036 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37032 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37020 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37016 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37008 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37040 TIME_WAIT -
tcp 0 0 test-keep-alive:8042 172.17.0.1:37028 TIME_WAIT -
10 sockets remain in TIME_WAIT. You'll notice in the python logs that requests has been "resetting dropped connection: localhost"
Once the test is complete, you must wait 60 seconds before all the TIME_WAIT sockets have been released.
In real life, we have observed a lot of "sockets starvation" with a python script polling orthanc at a 1 second interval. After a while, the script is not able to connect to Orthanc because Orthanc is not able to accept a new connection. It usually works again immediately after. In the phyton logs, it shows a connection error every 1-2 minutes.
The workaround is to have a polling interval smaller than the KeepAliveTimeout configured in Orthanc.
We might want to set a linger option but it requires more analysis.
References documentation:
- similar issue with moby https://github.com/moby/moby/issues/7350 (seems setting /proc/sys/net/ipv4/tcp_fin_timeout could be an option)

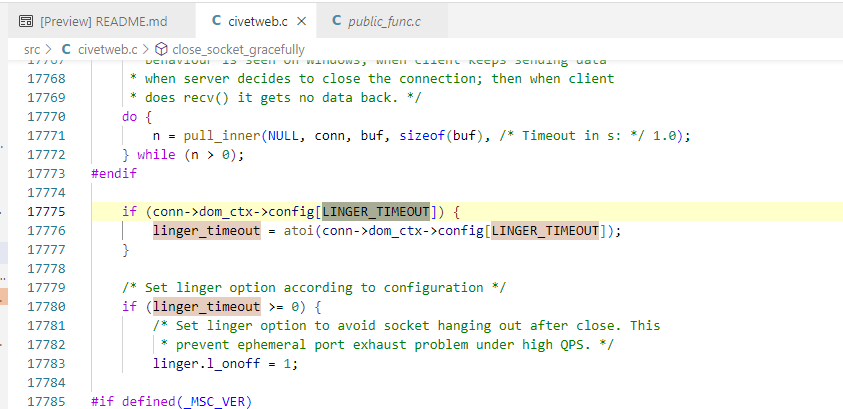

- in CivetWeb, it seems we could set a linger_timeout to release the socket earlier
|
